Chapter: 4

Module – I: Motion, Force and Energy

INTEXT QUESTIONS 4.1

1. Identify examples of projectile motion from among the following situations:

[Hint: Remember that at the time of release the bomb shares the horizontal motion of the plane.]

(a) An archer shoots an arrow at a target.

(b) Rocks are ejected from an exploding volcano.

(c) A truck moves on a mountainous road.

WhatsApp Group Join Now
Telegram Group Join Now
Instagram Join Now

(d) A bomb is released from a bomber plane.

(e) A boat sails in a river.

Ans: (a) Yes, it is an example of projectile motion.

(b) Yes, it is an example of projectile motion.

(c) No, it is not an example of projectile motion.

(d) Yes, it is an example of projectile motion.

(e) No, it is not an example of projectile motion.

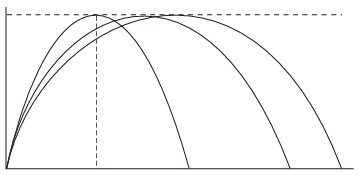

2. Three balls thrown at different angles reach the same maximum height.(Fig. 4.3):

(a) Are the vertical components of the initial velocity the same for all the balls? If not, which one has the least vertical component?

(b) Will they all have the same time of flight?

(c) Which one has the greatest horizontal velocity component?

Ans:


(c) The ball thrown at the smallest angle has the largest vox = vo cosθo

3. An athlete set the record for the long jump with a jump of 8.90 m. Assume his initial speed on take off to be 9.5 ms–1. How close did he come to the maximum possible range in the absence of air resistance? Take g = 9.78 ms–2.

Ans:

Difference =9.23-8.90=0.33 m.

Hence the record is only 0.33 m short of the ideal value.

INTEXT QUESTIONS 4.2

1. In uniform circular motion:

(a) Is the speed constant?

Ans: Yes. In uniform circular motion, the object moves along a circular path with constant speed (magnitude of velocity.

(b) Is the velocity constant?

Ans: No. Velocity is a vector, and though speed is constant, the direction of motion continuously changes, so the velocity is not constant.

(c) Is the magnitude of the acceleration constant?

Ans: Yes. The acceleration always points toward the center of the circle and its magnitude is given by a = v2/r which stays constant if speed and radius remain constant.

(d) Is acceleration constant? Explain.

Ans: No. Although the magnitude is constant, the direction of acceleration keeps changing, so the acceleration vector is not constant.

2. In a vertical motion does the angular velocity of the body change? Explain.

Ans: Yes, in vertical circular motion angular velocity changes. This is because gravitational force affects the speed of the object—speed increases as the object moves downward and decreases as it goes upward. Since angular velocity depends on speed, it also changes.

3. An athlete runs around a circular track with a speed of 9.0 m/s-1 and a centripetal acceleration of 3 m/s-2. What is the radius of the track?

Ans: Given: speed = 9.0 m/s

acceleration = 3 m/s².

Radius = 27 m

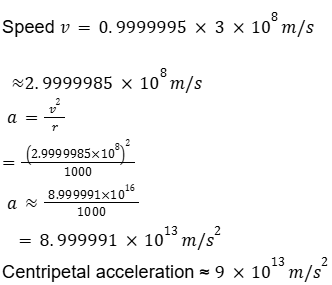

4. The Fermi lab accelerator is one of the largest particle accelerators. In this accelerator, protons are forced to travel in an evacuated tube in a circular orbit of diameter 2.0 km at a speed which is nearly equal to 99.99995% of the speed of light. What is the centripetal acceleration of these protons? Take c = 3 × 108 ms–1.

Ans: Given: Diameter = 2.0 km

= 2000 m

→ Radius r=1000 m
